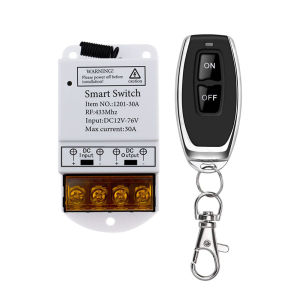

Universal DC 12V 24V 76V 30A Remote Relay 433Mhz Remote Control Wireless Switch On Off Used for Smart home appliances/Light

Note: Our products are a combination package, which can be used together or separately, so the products received by the buyer are based on the option picture of the SKU. If you only purchase the receiver, you will only receive the receiver without the remote control. If you only purchase the remote control, you will only receive the remote control without the receiver.Input Power: DC12-72V Max Current: 30A RF Frequency: 433MHz RF working mode: ASK superheterodyne Receive sensitivity: >97dbm Transmitting distance: 20-50m Remote storage: 20pcs Working mode: Momentary, Toggle, Latching,Time delay(5s, 10s,15s,20s) Wiring type: Fixed terminal About Working mode：1.Momentary mode:Push the remote button , the relay connects,release the remote button , the relay dis-connects.2.Toggle mode:Push once the remote button , the relay connects , pushtwice the remote button , the relay dis-connects .3.Latching mode:Push the remote button ON, the relay connects, pushthe remote button OFF, the relay dis-connect.4.Time delay mode : Push the remote control button,the relayconnects ,from when release the remote button,after 5s or 10s or 15sor 20s,the relay disconnect automatically.5.Automatic energize when power on : when power supply,the relayconnects.Clear function:After push the receiver's learning button 9 times , the receiver Clearall the remote control data in its memory.When the LED FLASH for 5few times,it indicates that the clear function is completed.(Aftercleared the code in the receiver,all the remote control must studyfrom receiver onece again to restart.)1.Learning the code :(momentary)Push the learning key on the receiver once time ,it comes intomomentary setting mode .Wait for a moment ,the LED will be on, itcomes into learning state .Push the remote button ,LED indicator on the receiver board will flash 3times and then come off ,learningsuccessfully.2.Learning the code : ( Toggle )Push the learning key on the receiver twice time , it comes into togglesetting mode Wait for a moment ,the LED will beon , it comes intolearning state .Push the remote button ,LED indicator on the receiverboard will Flash 3 times and then come off, learning successfully .3.Learning the code :( Latching )Note: When you choose for latching mode ,in order to learn moreremote control ,you need to learn two different button,the irst timelearnt is for “ON”, the second time learnt for “OFF”.For example : buttonA = ON , button B = OFF ,Push the learning key on the receiver tripletime , it comes into latching mode .Wait for a moment, the LEDindicator on the receiver board will be on,Push the remote button A,LED flash for 3 times .Push the remote button B .LED indicator flash for3 times and then come off, learning successfully .4.Learning the code :( Time delay mode )Push the learning key on the receiver 4 time,the time dealy for 5 seconds. Push the learning key on the receiver 5 time,the time delay for 10 seconds. Push the learning key on the receiver 6 time,the time delay for 15 seconds. Push the learning hey on the receiver 7 time,the time delay for 20 seconds.The LED indicator will be on.Push the remote button LED indicator Flashes 3 times and then off,learning successfully. 5.Learning the code : (Automatic energize when power on)Push the learning key on the receiver eight times , it comes into setting mode Wait for a moment , the LED will be on , it comes into learningstate .Push the remote button,LED indicator on the receiver board willflash 3 times and then come off, learning successfully .NOTE: The system can store for 20 pcs of remotes , if the remoteget more than 20 pcs , the initial remote control will be lost .
