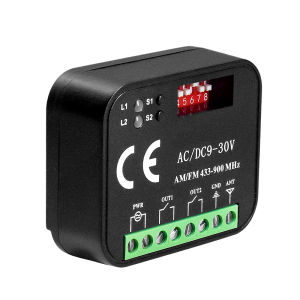

Garage Door Receiver Remote Control Switch Universal 433.92MHz 2CH Remote Control Relay RF 433MHz Module rolling code

SMG-662 Universal Garage Door Receiver Switch Multi Frequency 300MHz to 900MHzSpecifications:1)Name: Receiver SMG-662.2)Operating Voltage: AC/DC 9V-30V or AC 85-250V3)Channel: 2.4)Frequency: 300MHz - 900MHz.5)Compatible with: Rolling Code and Fixed Code & Learning code.6)Size: 5.6cm X 4.6cm X 2.0cmWorking frequency: 300-900MHz(Rolling code & Fixed code)300MHz310MHz315MHz318MHz390MHz433.4MHz433MHz433.92MHz868MHz868.3MHz868.8MHzCan identify ALL Fixed code (2262, 2260, 2264, 5326, M1E, M5E and so on). All Learning code (1527, 2240, 6P20B, 6P20D and so on), Rolling code (HCS301, HCS300,HCS200, HCS201, HCS100, HCS101),Wide range of use:Garage doors, Gate Doors, Automatic barrier,Electronic gates,motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products, Electrical appliances/Home automation,Alarm Systems etc.Feature1) Distance: 30-50 meters.2) Compatible with 95% of garage door brands on the market.3) One receiver can work with 400 codes.4) It don’t interference other remotes and receivers.5) Brand selector: With 8 dip switches user can make different combination for different remote brands.6) Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it’s better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.IncludeReceiverSmall AntennaEnglish ManualHow to program - It is easy!1) Select the correct brand for remote to be programmed by moving dip switches UP or DOWN. For example 433,92Mhz Marantec remote controls, just move Dip-switch 7 UP. 2) Press the learn button. The will LED turn on. 3) Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully. 4) Repeat step 2 for another button.5)The 2-nd channel programming procedure is the same. Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recovered
