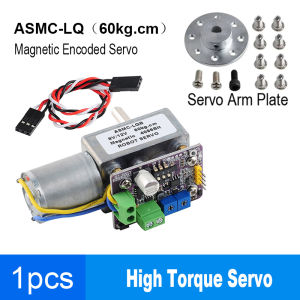

High Torque Servo 60kg 360 Degree Magnetic Encoder Worm Gear Reduction Power Off Self-locking Servo for Robot Arm Valve ASMC-LQB

ASMC-LQB 60kg Servo 360 Degree Magnetic Encoder Worm Gear Reduction Power Off Self-locking Servo for Robot Arm Valve ControlFeatures:- Suitable for servo controllers, wireless remote controllers for model airplanes and analog voltage control- Alloy gear high-power motor with high-torque output- Ultra-lightweight gearbox body made of aluminum alloy- Easy to install and durable to useApplication:- Heavy-duty motion control of arm joints and leg joints of large robots- Industrial automation production line manipulator control- Precise control of valve angle- Large camera pan/tilt remote control- Various occasions requiring large torque angle controlRated Parameters:- Rated voltage: 8~12V/DC (8V/MIN~20V/MAX, limit voltage)- No-load current: - Limit angle: ±180° or 0°~360° (MAX). Servo has electronic limit adjustment- Control method: 1. RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz (frequency), suitable for wireless remote control. 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz (frequency), suitable for multi-channel servo controller mode. 2. Analog voltage mode: 0V-5V input voltage (0V corresponds to 0°, 5V corresponds to 360°)- Control resolution: 360° corresponds to 12Bit resolution (4096); 32-bit MCU for ARM; digital port to read magnetic encoding data- Material: Gear and shaft: alloy steel; gearbox body: cast aluminum- Weight: 160-170g/0.35-0.37 lb- Dimensions: 42 x 40 x 82mm/1.7 x 1.6 x 3.2"- Mechanical life: >1,000,000 times/full load (conservative value)Limit Parameters:- Limit voltage: 8V~20V/DC (MAX)- Current limit: 1A±0.2A (MAX)- Working angle: ±180° or 0°~360° (MAX)-Control methods: 1. RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz~333Hz (frequency); 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz~333Hz (frequency). 2. Analog voltage mode: 0V-5V input voltage. 0V corresponds to 0°, 5V corresponds to 360°- Weight: 160-180g/0.35-0.4 lbSpecifications:- Model: ASMC-LQB- Starting torque: 60kg.cm max- Holding torque: 60kg.cm max- Rated speed (24V power supply): 0.5s/60°Package Included:- 1 x ASMC-LQB Servo- 1 x Signal Cable
