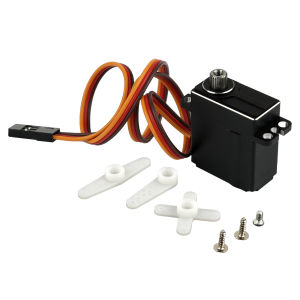

11KG Digital Servo 4.8-8.4V Micro Servo Coreless Motor 180/270/360 Degrees for 1:24 SCX24 SCX10.3 Model Aircraft Helicopter Tail

11KG Digital Servo 4.8-8.4V Micro Servos Coreless Motor 180/270/360 Degrees for 1:24 SCX24 SCX10.3 Model Aircraft Helicopter Tail Products Specifcation Products Name:11KG Digital servo motor torage Temperature Range -30°C～80°C Operating Temperature Range -25°C～70°C Temperature Range -25°C～70°C Humidity Range 65%±10% Size 23.026.312mm Weight 22g±5% Gear type 5 Metal Limit angle 360° Bearing 2BB Horn gear spline 25T Diameter :5.0mm Horn type Plastic, POM Case Aluminum alloy Connector wire 250mm±5mm Motor Coreless high speed motor Splash water resistance IP65 Operat voltage 4.8V 6.0V 7.4V 8.4V Idle current: ＜40mA No load speed: 0.11sec/60 ° 0.09sec/60° 0.07sec/60° 0.06sec/60° Runnig current: 160mA 180mA 220mA 250mA Peak stall torque: 6.5kg.cm 8.5kg.cm 11.5kg.cm 13.5kg.cm Stall current: 1600mA±10% 2000mA±10% 2200mA±10% 500mA±10% Command signal Pulse width modification Amplifier type: Digital controller Pulse width range: 500～2500usec Neutral position: 1500usec Running degree: 180°±3°/270°±3°(when 500～2500usec)/360° continuous rotation Dead band width: 3 usec Rotating direction: Counterclockwise (when 1000～2000usec) Suitable for 1:24 model SCX24 SCX10.3 model aircraft helicopter tail Package includes: 1 x 11KG micro digital servo
