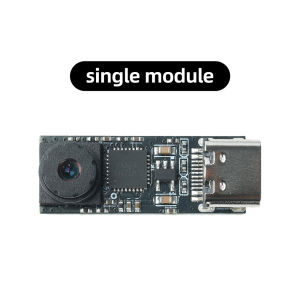

Aideepen | ESP32-S3 Development Board Mini USB Type-C Camera Module 720P UVC Plug and Play 1280×720 1MP 65 Degrees Standard UVC Protocol

Features:1. Deeply optimized for the ESP32-S3; plug-and-play with no drivers or complex configuration required, significantly lowering the barrier to entry for embedded vision development2. High-definition 720p UVC standard protocol, supporting 1280×720 resolution, and compatible with mainstream platforms such as Linux and Windows3. Features a compact and lightweight USB Type-C interface, saving PCB space and facilitating integration into small devices or wearable prototypes4. 1MP high-sensitivity image sensor + 65° wide-angle field of view, delivering minimal image distortion and sharp edges, effectively reducing the curvature distortion caused by wide-angle lenses5. Equipped with the standard UVC protocol; no need to write complex drivers or install additional software—it is recognized immediately upon connectionSpecifications:Lens: M5-CSPFocal Length: 2.07 ± 5% mmAperture: 2.4 ± 5%Field of View: 65°Distortion: Mount: 8×8Working Distance: 5 cm–20 cmResolution: 1280×720/480×320Color: RGBInterface: USB 1.1/USB 2.0Output Format: YUV/MJPEGOperating Voltage: DC 5 VPackage Contents:Camera Module × 1Connection Cable × 1 (optional)
